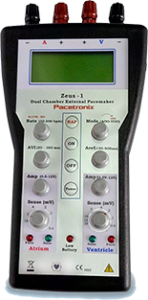

Zeus -1

Zeus -1

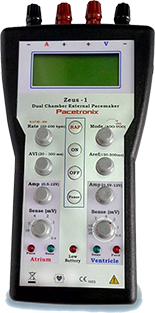

zeus_01



TECHNICAL DATA
Parameters Values
Description of Pacemaker Dual Chamber External Pacemaker
Rate 30 to 200 PPM (In Steps of 2 PPM)
Upper Rate Base Rate +30 PPM (min 110 PPM)
Amplitude (A) 0.5 TO 12 Volts
Amplitude (V) 0.5 TO 12 Volts
Sensitivity ATRIUM 0.4 TO 10 mV
VENTRICLE 0.8 TO 20 mV
Mode AOO, AAI, DOO, DVI, DDI, DDD, VDD , VVI, VOO, Urgent
AV Delay 20 to 300 ms ( in steps of 1 ms)
Pulse Width (A)1.0 — (V)1.5 ms
V Blanking Period (Pace) 125 ms , (Sens) 75 ms
Refractory (A) 400 ms , (V) 250 ms
Rapid Atrial Rate 80 to 800 PPM
Battery Life 166 hrs
Battery Chemistry Duracell 9V PP3 Alkaline battery
Polarity Bipolar
Indication
  1. Pacing Indication :
    Flashing LED’s on the front panel for both A & V.
  2. Sense Indication :
    Flashing LED’s on the front panel for both A & V
Low battery Indicator Replace battery as Low battery Indicator glows
Pause Button When pressed output will be stopped for at the most 10 sec
ON/OFF Button Separate ON and OFF button to start and stop the device
Lead Cable
